Magnetic Liquid Traps are designed to extract unwanted ferrous particles from liquid processing and food conveyors. Each unit contains several high-energy neodymium magnetic rods which can grab ferrous particles out of the moving product and hold them tightly to prevent them from reintroducing back into the product. Our Magnetic Liquid Traps can be manufactured to meet food and sanitary specifications.

Liquid Traps Applications

  • Liquid
  • Semi-liquid
  • Powder

Anything that conveys liquid, semi-liquid, or powder such as heavy oils, chocolate, fruit juice, syrup, jam, soup, spreads, milk, other chunky products, and many others. Our magnetic liquid traps are available in a variety of sizes for your particular need.

Liquid Traps Construction Material

Our liquid traps can be constructed with the following stainless-steel material:

  • 304
  • 316
  • 316L

Magnetic Liquid Traps consist of a housing that includes mounting flanges. It also includes several magnetic rods which are welded to a tightly sealed lid. Each unit can simply be mounted to an existing pipe via various connection types such as flanges with mounting holes or quick release clamps. The magnetic assembly portion is secured with a clamp for line pressures of 87 psi and less, see the first 2 photos below. Swing away fasteners are used for line pressures higher than 87 psi, see the third photo below.

Clamp style magnetic liquid traps
Clamp Style
Clamp style magnetic liquid traps
Clamp Style

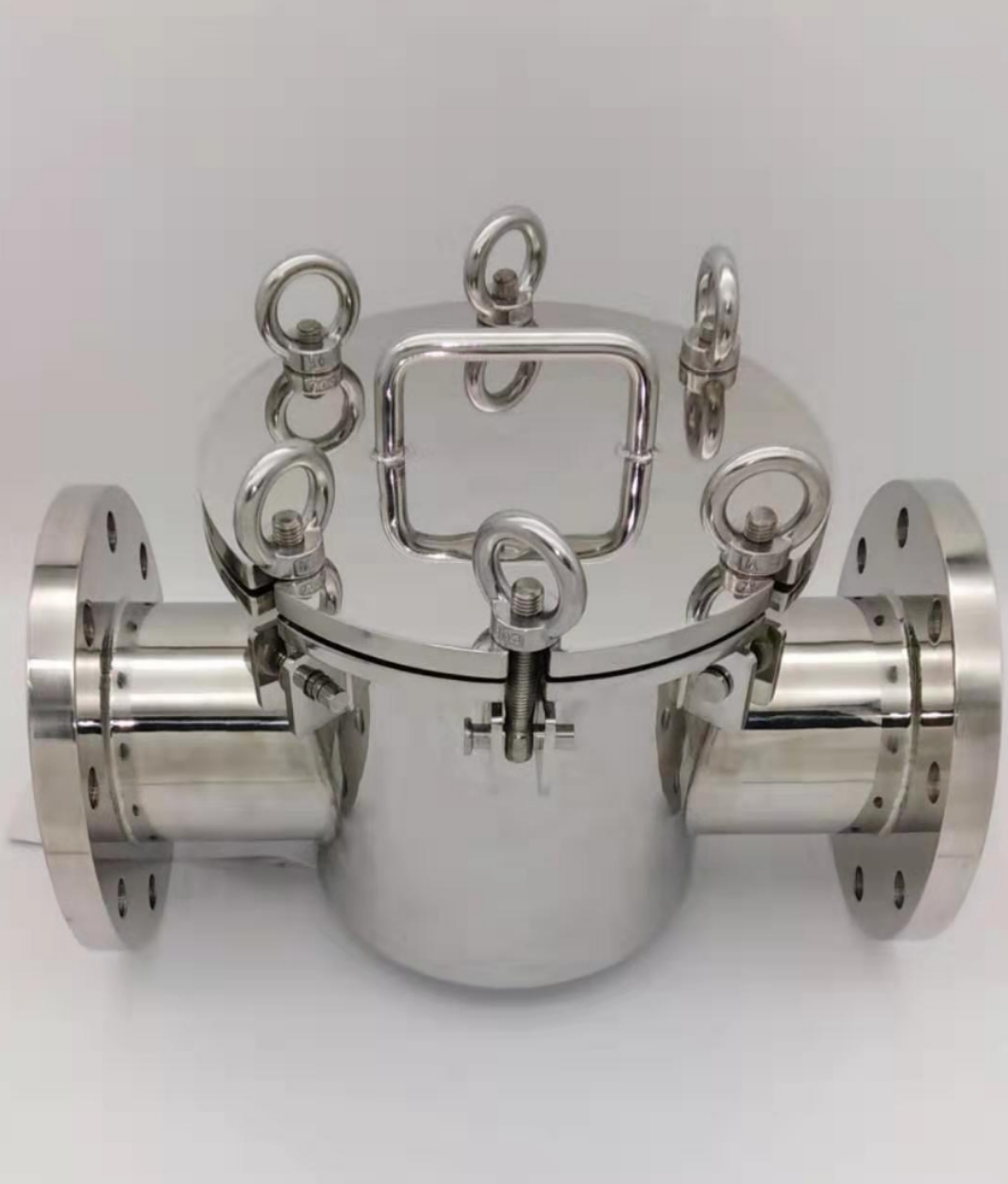

Swing away fasteners - magnetic liquid traps
Swing Away Fasteners

With competitive lead times of 4 weeks, we are happy to discuss your specifics and get you what you need in a timely manner.

Our team is available to answer any questions and help you get a quote today!

Request A Quote


The easy cleaning design is available for faster cleaning time. See below photos for magnetic liquid traps with an easy clean feature:

Easy Cleaning Liquid Traps

Easy Cleaning Liquid Traps

This image shows the Magnetic Liquid Traps Easy Cleaning option with all of the parts assembled together.

Easy Cleaning Liquid Traps Partially Taken Apart

Easy Cleaning Partially Disassembled

This image shows the Magnetic Liquid Traps Easy Cleaning option partially disassembled for cleaning.

Easy Cleaning Liquid Traps Taken Apart

Easy Cleaning Disassembled

This image shows the Magnetic Liquid Traps Easy Cleaning option completely disassembled for cleaning.







Magnetic Liquid Traps Schematic Diagram

Magnetic Liquid Traps Scematic Diagram
Magnetic Liquid Traps Scematic Diagram

Magnetic Liquid Traps Sizing Table

Part Number:Dimensions[mm]
D d H L
NO. of rodsWeight
[KG]
FT100/25CC
100 25.4 150 220
3 6
FT100/38CC
100 38.1 150 220
3 6.5
FT100/50CC
100 50.8 150 220
3 7
FT100/76CC
100 76.1 150 220
3 8
FT114/25CC
114 25.4 150 250
5 8
FT114/50CC
114 50.8 150 250
5 9
FT114/76CC
114 76.1 150 250
5 10
FT150/25CC
159 25.4 150 300
5 12
FT150/38CC
159 38.1 150 300
5 13
FT150/50CC
159 50.8 150 300
5 14
FT150/76CC
159 76.1 150 300
5 16
FT150/89CC
159 88.9 150 300
5 17
FT150/100CC
159 101.6 150 300
5 19
FT200/25CC
219 25.4 200 350
7 24
FT200/38CC
219 38.1 200 350
7 26
FT200/50CC
219 50.8 200 350
7 28
FT200/76CC
219 76.1 200 350
7 30
FT200/89CC
219 88.9 200 350
7 32
FT200/100CC
219 101.6 200 350
7 34

For custom sizing to accommodate your unique application or project, please contact our team by clicking the button below.

Request Custom Sizing

Request a Quote
